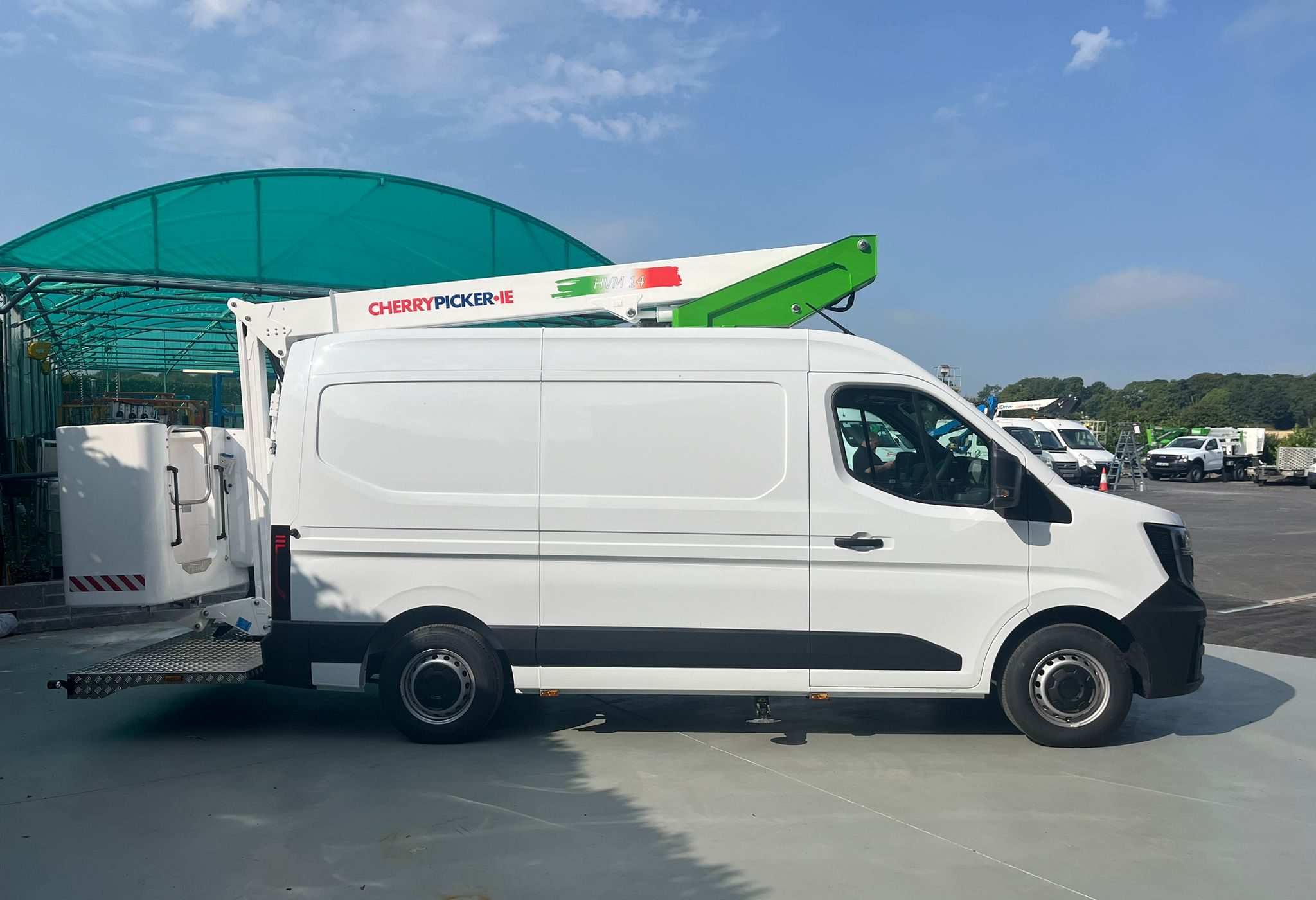

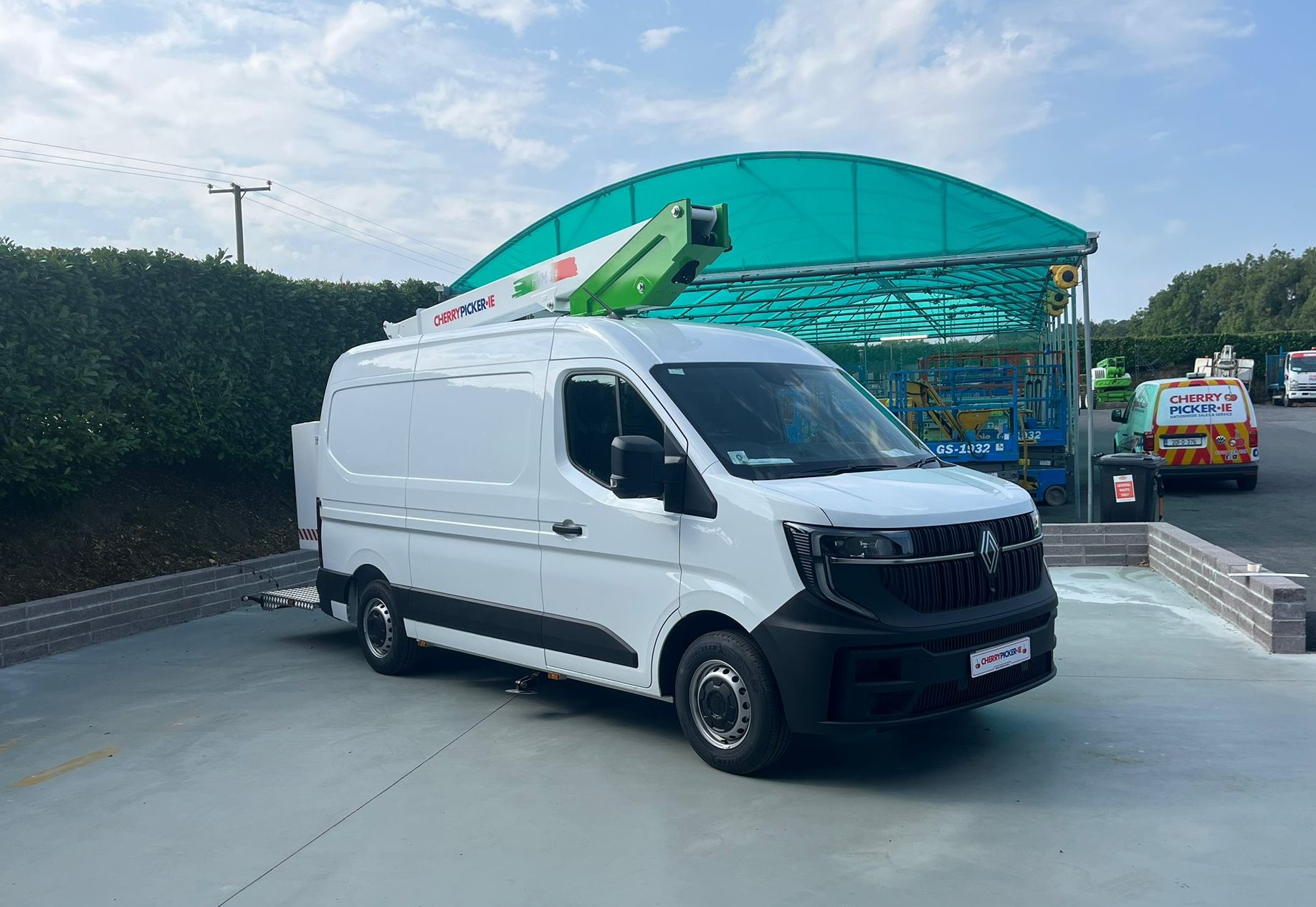

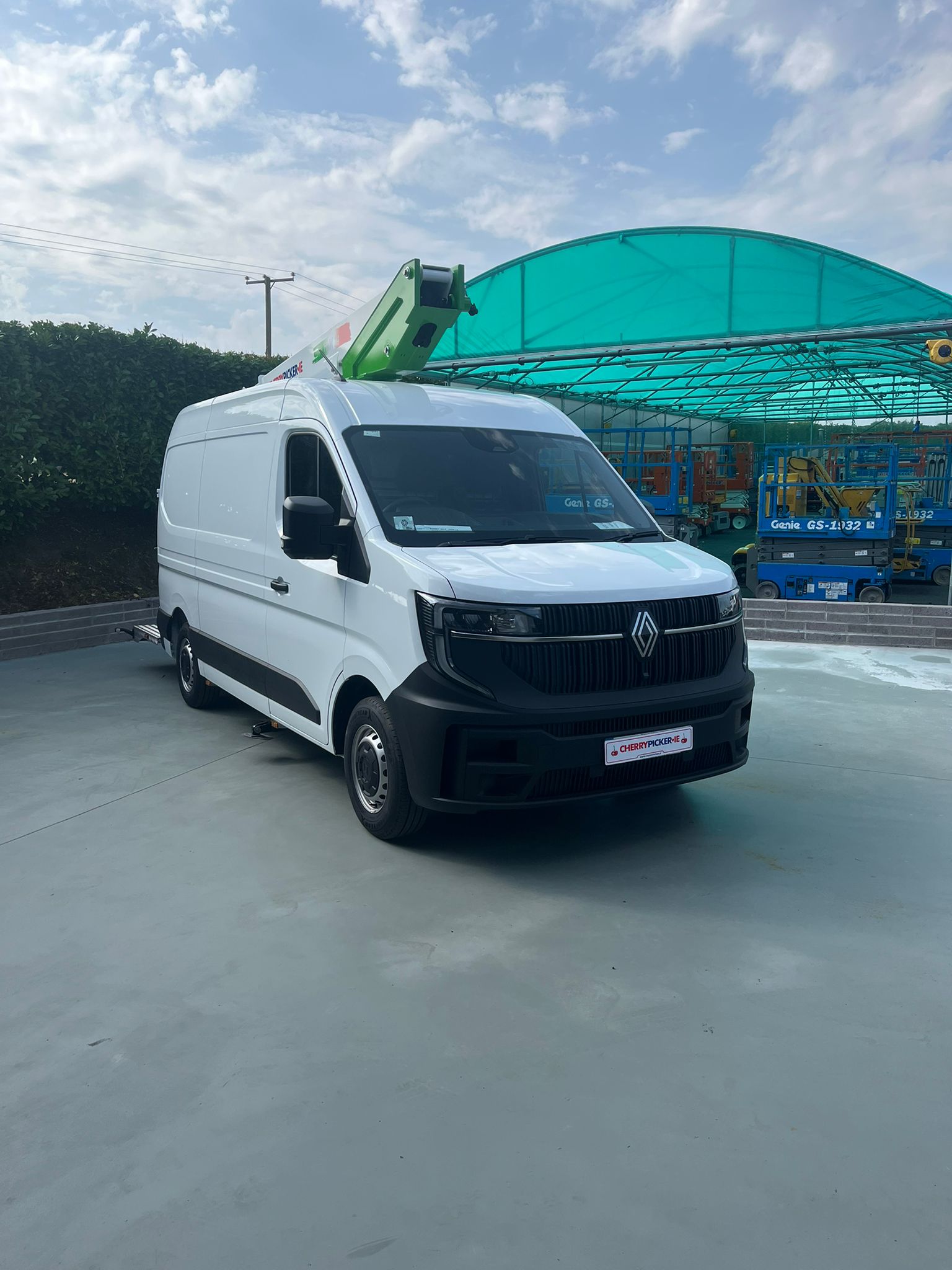

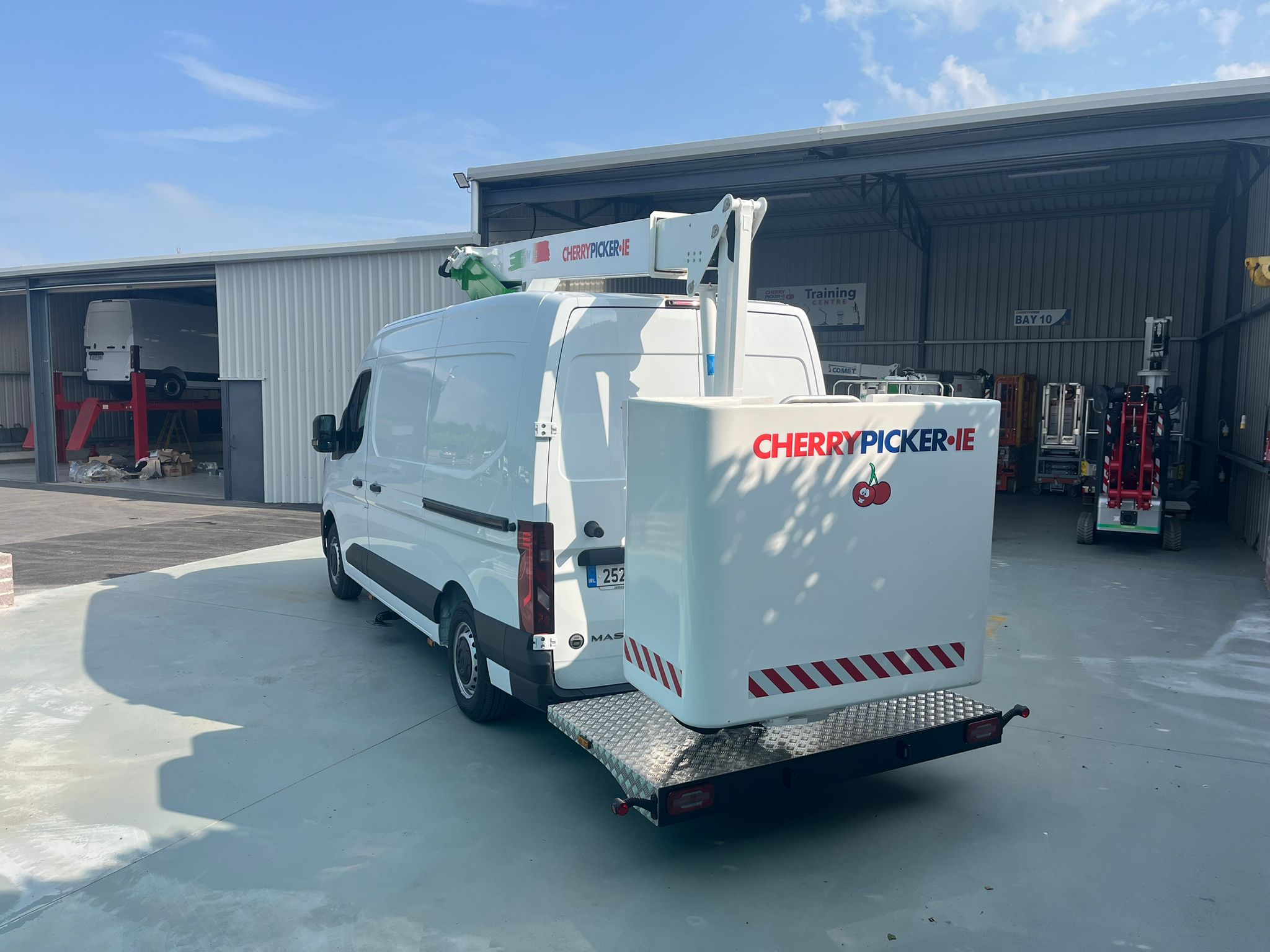

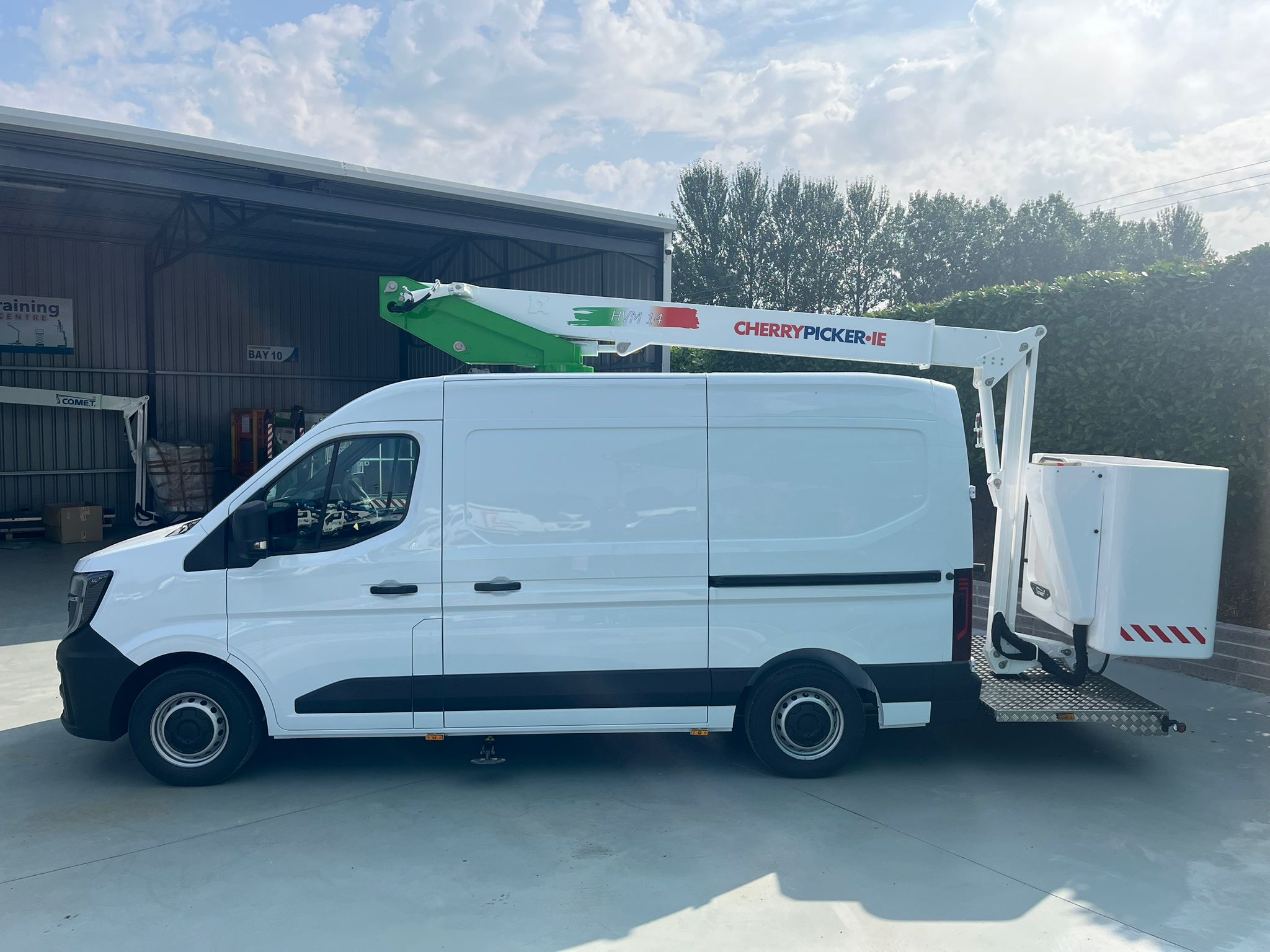

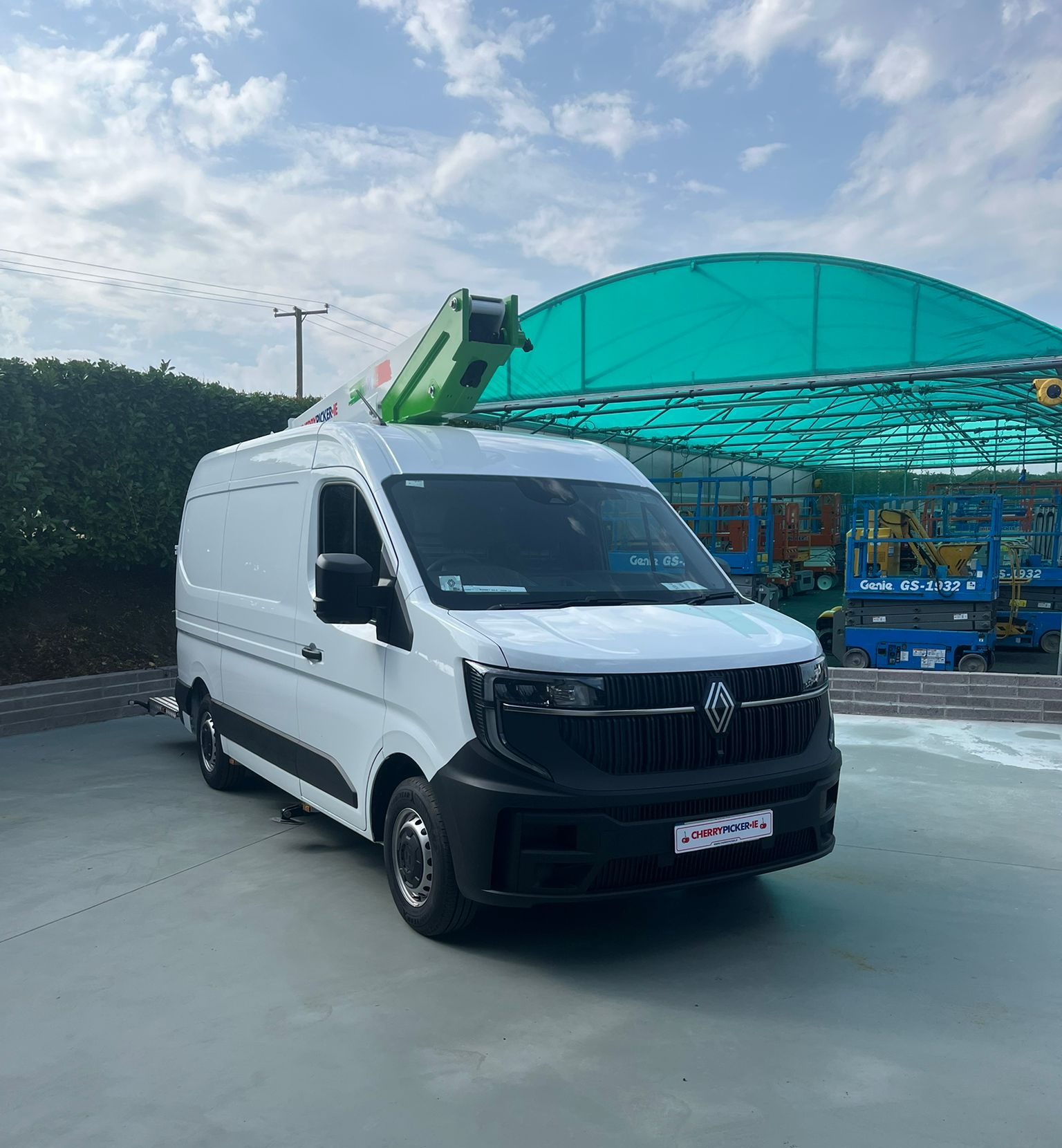

Van Mount HVM-14

Controls

• 100% hydraulic controls directly from the nacelle, with low pressure proportional system in the nacelle (only 25 BAR) for precise and millimetric movements. Thanks to the low pressure hydraulic system, a very long life of the system is guaranteed with very low maintenance costs.
•  Ground emergency control station.
•  The controls allow you to perform 2 movements simultaneously and to obtain a greater sensitivity of progressive and gradual maneuvering compared to the electro-hydraulic ones as well as avoiding failures of the electrical components resulting from rainy weather, humidity, frequent use, etc.
•  Check valves fitted to all hydraulic cylinders.
•  Control levers with automatic return to rest position. The movements of the entire platform are activated by using levers, located respectively in the following control stations:
  – nacelle: platform control panel
  – turret: platform control panel for emergencies only
  – base: stabiliser control panel

Safety Devices

•  Lock the stabilizers when the arm is not in the rest position.
•  The arm will lock if the props are not fully lowered and do not detect the actual stabilization of the vehicle.
•  Boom and stabilizer lock if cabin PTO is not engaged.
•  No need for a lateral outreach limiter (100% SAFE): the operator can move safely throughout the entire work area without the need for a special device that limits movements in case of danger. Thanks to the model’s design, ANY work position reachable with the platform is ALWAYS within the safe work area.
•  Manually operated emergency pump allows any maneuver in the event of a failure of the main pump, in particular the return to the rest position of the arm and props, it is able to operate even with a flat battery.
•  All movements of the structure are carried out by double-acting hydraulic jacks with double-piloted safety valves that control the flow of oil in and out.
•  Yellow flashing rotating beacon positioned by a magnet on the roof of the vehicle cabin.
•  Indicator light for stabilizers not fully lowered in the cabin.
•  General safety button for emergency shutdown.
•  Thermal protection device for the electrical system.
•  Safety device that prevents the starter motor from engaging while the engine is running.
•  Basket-JIB/Boom Anti-Collision System (Alarm-Stop)

Shipbuilding

•  Carrycot size: L1400xW700xH1100mm
•  Steps for access to the nacelle
•  100% hydraulic controls that make 2 movements possible at the same time
•  Continuous and gradual automatic levelling of the nacelle with independent hydraulic circuit
•  Turning the vehicle engine on and off from the nacelle
•  No. 2 seat belt attachments

Stabilizers

•  N.4 stabilizers in shape with individual controls
•  100% separate and independent hydraulic maneuvering controls for perfect leveling even on uneven terrain
•  Hydraulic distributor composed of 4 levers for simultaneous or independent lowering/retracting of the stabilisers
•  Stabilizer enable light

Pumps Power

•  Power take-off
•  Different PTO characteristics depending on the type of carrier vehicle
•  Cabin light for PTO engaged
•  Pump, gear type, flow rate of 22lt/min. with engine at minimum speed
•  Hour meter in the cabin to control the vehicle’s working hours and to verify the frequency of scheduled maintenance

Body

•  Non-slip chequered aluminum floor
•  Ergonomic ladders mounted on the base to facilitate access to the platform
•  Rear bumper
•  Arm support in resting position

Painting

• All metal parts are protected from corrosion, thanks to a high quality painting for the frame and aerial platform. All insulating components are painted in white.

Assembly

• Fixing the platform to the vehicle chassis, hydraulic and electrical connections, ballasting if necessary

Warranty

The platform is guaranteed for 12 months from delivery date .
The vehicle is guaranteed by the Manufacturer.

The following are provided for the platform:

• Use and maintenance manual
• Spare parts manual
• Hydraulic and electrical diagrams

Optional

•  Emergency electric pump 12/24V
•  Additional magnetic flashing yellow light
•  Adjustable white LED light
•  12/24V electrical socket in the nacelle (required for the 60W headlight)
•  Toolbox to attach to the carrycot
•  N.4 under-prop plates
•  N.2 support grids for n.4 under-prop plates
•  Provision for compressed air-water system
•  Additional 230V electric motor for operations in internal areas
•  Stainless steel watertight cabinet 1100x350x350 mm on the floor
•  Aluminium sides H200mm
•  Sign holder on the floor with 4 compartments
•  Cone holder
•  Wheel wedge
•  Seat belts
•  Reinforced chassis for 4×4 trucks
•  Reinforced chassis for trucks from 6t to 12t
•  Reinforced chassis for trucks over 12t
•  Fiberglass vessel L1400xW700xH1100 mm insulated up to 5000V
•  Long aluminum nacelle L1600xW700xH1100mm
•  Fiberglass vessel long L1600xW700xH1100mm insulated up to 5000V
•  Special color (longer delivery time)
•  Ground mounted hydraulic jacks for the use of high performance hydraulic tools
•  Hydraulic sockets in the nacelle for the use of high-performance hydraulic tools
•  Complete range of hydraulic tools
•  Load cells
•  Fire extinguisher (2kg)
