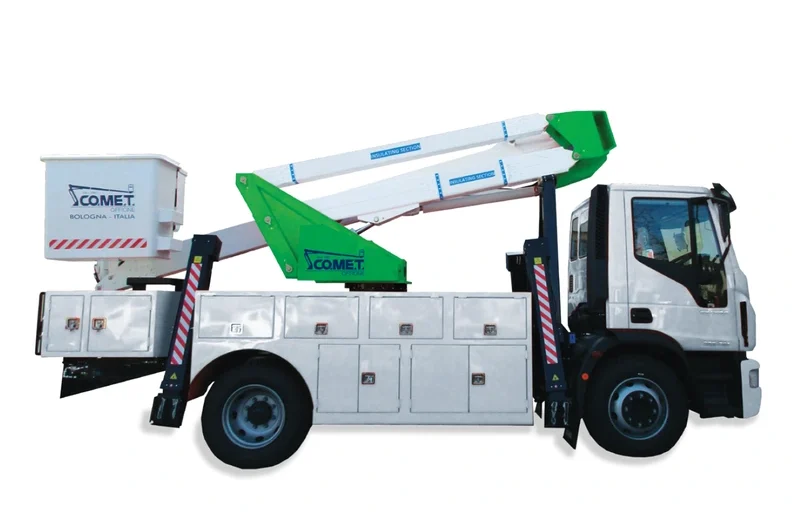

Insulated Aerial Platform Eurosky-I 16|2|11

Controls

• 100% hydraulic controls directly from the nacelle to ensure maximum reliability over time and great precision in maneuvers.
• Ground emergency control station.
• The controls allow you to perform 2 movements simultaneously and to obtain a greater sensitivity of progressive and gradual maneuvering compared to the electro-hydraulic ones as well as avoiding failures of the electrical components resulting from rainy weather, humidity, frequent use, etc.
• Check valves fitted to all hydraulic cylinders.
• Control levers with automatic return to rest position. The movements of the entire platform are operated by means of levers, located respectively in the following control stations:

– Nacelle : platform control panel

– turret : platform control panel for emergency only

– base : stabilizer control panel

After having activated any movement, as soon as the lever is released, it automatically returns to the rest position, blocking any accidental movements.

Safety Devices

• Stabilizer/aerial part interlock: stabilizer lock when the boom is not in the rest position + boom lock if the props do not detect the actual stabilization of the vehicle.
• Boom and stabilizer lock if cab PTO is not engaged.
• No need for a lateral outreach limiter (100% SAFE) : the operator can move safely throughout the entire work area without the need for a special device that limits movements in case of danger. Thanks to the special design of the platform, EVERY work position reachable with the basket is ALWAYS within the work area.
• Manually operated emergency pump allows any maneuver in the event of a failure of the main pump, in particular the return to the rest position of the arm and props, it is able to operate even with a flat battery.
• All movements of the structure are carried out by double-acting hydraulic jacks with double-piloted safety valves that control the flow of oil in and out.
• Yellow flashing rotating beacon positioned by a magnet on the roof of the vehicle cabin.
• Indicator light for stabilizers not fully lowered in the cabin.
• General safety button for emergency shutdown.
• Thermal protection device for the electrical system.
• Safety device that prevents the starter motor from engaging while the engine is running.

Shipbuilding

• Fiberglass vessel with capacity up to 250 Kg insulated up to 46 KV DIM: L1192XW583XH1056MM
• Hydraulic rotation of the nacelle: 90°+ 90°
• 100% hydraulic controls that make 2 movements possible at the same time
• Continuous and gradual automatic levelling of the nacelle with independent hydraulic circuit
• Turning the vehicle engine on and off from the nacelle
• Pre-alarm and overload alarm lights in the nacelle
• Arm centering indicator in rest position
• Gravity lock breaker bar
• Footrest H15cm
• 2 seat belt attachments

Stabilizers

• 4 stabilizers with individual controls
• 100% separate and independent hydraulic maneuvering controls for perfect leveling even on uneven terrain
• Hydraulic distributor composed of 4 levers for simultaneous or independent lowering/retracting of the stabilisers
• Stabilizer enable light

Pumps Power

• Power take-off
• Different PTO characteristics depending on the type of carrier vehicle
• Indicator light in the cabin to indicate whether the PTO is engaged
• Pump , gear type, flow rate of 20lt/min. with engine at minimum speed
• Mechanical or electrical engagement
• Hour meter in the cabin to control the vehicle’s working hours and to verify the frequency of scheduled maintenance

Body

• Non-slip chequered aluminum floor
• Ergonomic ladders mounted on the base to facilitate access to the deck and the carrycot
• Rear bumper
• Arm support in resting position

Painting

• All metal parts are protected from corrosion, thanks to a high quality painting for frame and aerial platform . Standard color: WHITE/GREEN

Assembly

• Fixing the platform to the vehicle chassis, hydraulic and electrical connections, ballasting if necessary

Warranty

The platform is guaranteed for 12 months from delivery date .
The vehicle is guaranteed by the Manufacturer.

The following are provided for the platform:

• Use and maintenance manual
• Spare parts manual
• Hydraulic and electrical diagrams

Optional

• FIBERGLASS BASKET COMPOSED OF TWO SEPARATE CAGES 135KG + 135KG
• Winch
• EARTHING DEVICE KIT
• BASKET LINING
• EMERGENCY PNEUMATIC PUMP
• HYDRAULIC PLUGS IN THE SUBFRAME AND IN THE BASKET FOR HIGH POWER HYDRAULIC TOOLS
• Additional yellow magnetic flashing light
• Toolbox to hang on the outside of the basket
• 4 stabilizers L400xL400xH40mm and n. 2 supports
• Seat belt
• Subframe for 4×4 trucks
• Heavy duty subframe for installation on trucks weighing over 12 t.
• Special color (longer delivery time)
• Fire extinguisher (2kg)
