Genie Z34/22 DC

Genie Z34/22 DC

Category:

Description

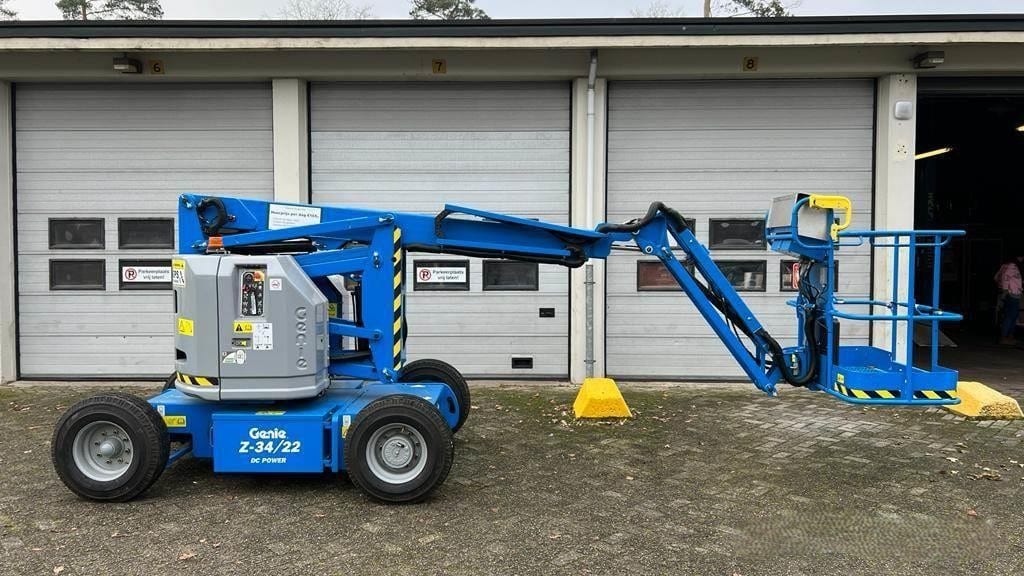

Genie Z34/22 DC

This Bi-Energy cherry picker offers quiet, emission-free operation in the most sensitive work environments.

  • 48V DC machine with diesel powered generator acting as 100 amp battery charger make it ideal for indoor and outdoor applications
  • Maximum drive performance of 30% gradeability and 4.0 mph travel speed
  • The direct electric, 48V drive system provides outstanding battery life
  • 4 ft (1.2 m) jib features 139 degree working range
  • Self-leveling platform features 180 degree, powered horizontal-rotation for precise positioning and easy operation
  • Automatic hill braking and ramp braking





    * required fields

    Specification

    We are currently uploading specification documents for all units, please fill out the enquiry form and we are happy to send one to you directly via email

    Makes

    New/Used

    Working Height (m)

    12.52
    Platform Height (m)

    10.52
    Outreach

    6.78
    Basket Capacity

    227
    Stowed Length (m)

    5.71
    Width (m)

    1.47
    Stowed Height (m)

    2
    Weight (kg)

    5632
    Power Source

    Bi-Energy
